GSX-1 Wireframe Sculpture

RP2040 • Embedded C++ • Electronics • 2022

At a glance

Type: Personal electronics project
Focus: Compact sensor interface and clean physical layout

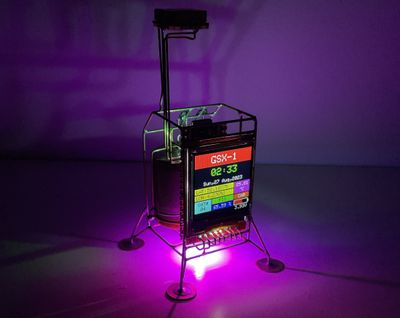

GSX-1 wireframe sculpture on a dark background

Inspiration

GSX-1 started as a small wireframe sculpture inspired by electronics-as-art builds, where the circuit and the structure are part of a visual language similar to the work of Mohit Bhoite.

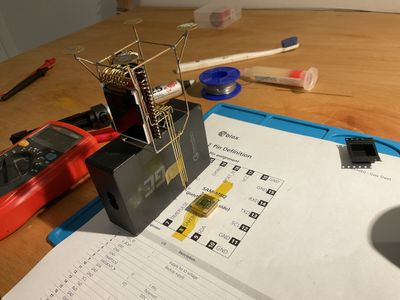

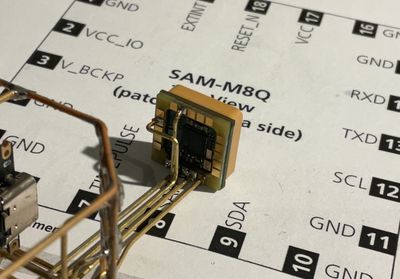

The challenge was to keep the wiring tidy enough to feel intentional while still fitting the microcontroller, GPS-related module, sensors, and display element into a very small footprint.

Electronics

I built the wiring scheme around an RP2040-based controller and wrote the control logic in C++ through the Arduino toolchain.

The focus was not only on making it work, but also on making the signal routing and physical assembly tidy when viewed up close.

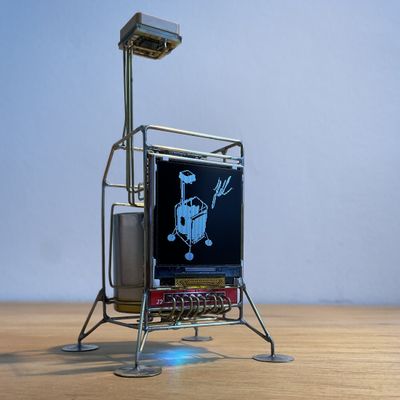

GSX-1 display showing its startup splash screen

Interface

The visible software layer is intentionally minimal: a small interface, clean startup behavior and enough feedback to make the object feel alive without turning it into a gadget demo.

This made the project a useful exercise in balancing technical aspects with aesthetics.
